Revo Block filter

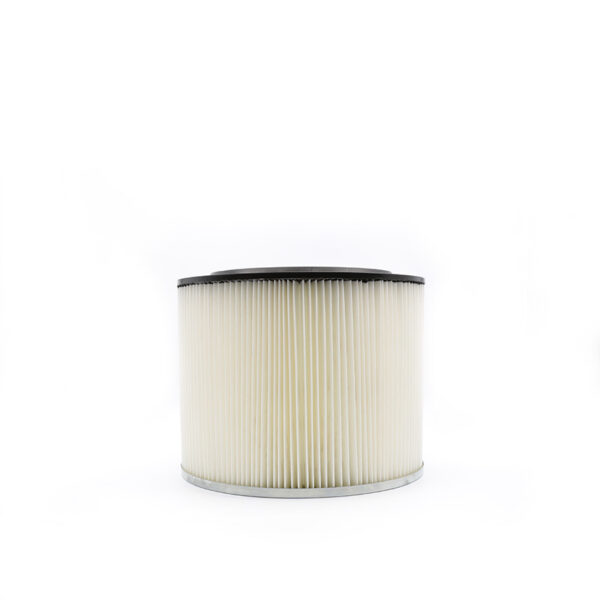

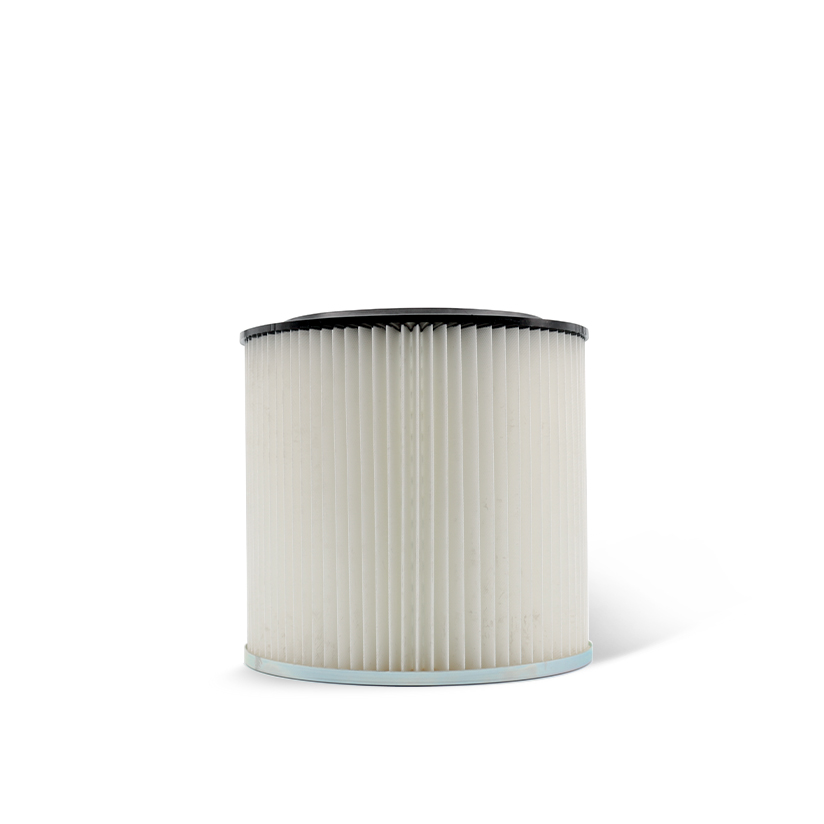

The washable polyester filter cartridge is an essential replacement part for the professional Revo Block central vacuum units by Sistem Air.
These filters are designed to deliver high performance and long-lasting durability, effectively capturing dust particles as small as 3 microns.
The advanced filtration class ensures a clean and safe work environment, making it ideal for professional applications that demand superior hygiene and reliability.

Compatibility and Item Codes

There are two filter versions available, depending on the Revo Block model:

• Revo Block 500 – Item Code: 1610.7
• Revo Block 700 – Item Code: 1610.7R
• Revo Block 1000 – Item Code: 1610.7R
• Revo Block 1200 – Item Code: 1610.7R
• Revo Block 1500 – Item Code: 1610.7R
• Revo Block 1800 – Item Code: 1610.7R

Main Features

• Compatibility: Specifically designed for use with the Revo Block series by Sistem Air, ensuring perfect integration and optimal performance.
• Material: Made of washable polyester, offering long life and easy maintenance while reducing the need for frequent replacements.
• Class M filtration: Captures dust particles down to 3 microns, keeping the environment clean and protecting the central vacuum motor.
• High filtration efficiency: Ideal for professional environments where a high level of cleanliness and air quality is required.

Technical Specifications – Filter 1610.7

Dimension	Value
Height	250 mm
Outer Diameter	245 mm
Inner Diameter	216 mm

Technical Specifications – Filter 1610.7R

Dimension	Value
Height	250 mm
Outer Diameter	270 mm
Inner Diameter	210 mm

Benefits of the Revo Block Filter Cartridge

The Sistem Air washable polyester filter cartridge for Revo Block central vacuum units is engineered to ensure long service life and maximum filtration efficiency.
Its durable, washable design reduces maintenance costs while prolonging the lifespan of your central vacuum unit.
With Class M filtration, it guarantees deep cleaning and a dust-free work environment, ideal for professional applications.

Learn more about proper use and maintenance by watching the instructional video.
