Square backplate installation kit

The installation kit with square backplates is a complete solution for building a central vacuum system, designed to simplify installation thanks to the inclusion of every essential component. Each kit supports 3, 4 or 5 vacuum inlets and provides high-quality materials to ensure a durable and efficient pipeline network.

Installation advice

For optimal coverage, it is recommended to install one vacuum inlet every 30–35 square metres. This ensures even suction distribution and makes daily cleaning easier.

The kits are designed for versatile use in different environments and can be combined to reach the required number of vacuum inlets, providing a scalable and flexible solution.

Example: for an installation requiring 7 inlets, you can simply combine a 3-inlet kit with a 4-inlet kit.

Kit contents

Each kit includes essential components to build the central vacuum pipeline network. The table below details the materials included in the 3-, 4- and 5-inlet versions:

Key benefits and features

1. Modularity and flexibility: Multiple kits can be combined to create tailored systems for any environment, regardless of size or layout.
2. High-quality components: Each kit includes durable materials such as PVC pipes and curved fittings, designed for long-lasting performance and secure connections.
3. Easy installation: Pre-selected components simplify installation and avoid the need for additional parts. The included glue ensures a stable and secure bond between pipes and fittings.

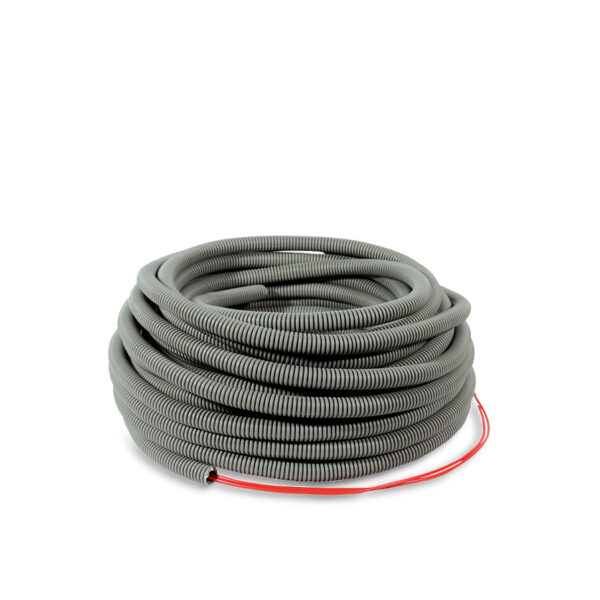

4. Electrical ducting included: Each kit provides electrical conduit to protect cables and ensure the installation meets safety standards.
5. Cleaner, healthier spaces: A central vacuum system reduces dust dispersion, improving indoor air quality. Proper inlet placement also shortens cleaning time and provides better reach throughout the property.

Compatibility

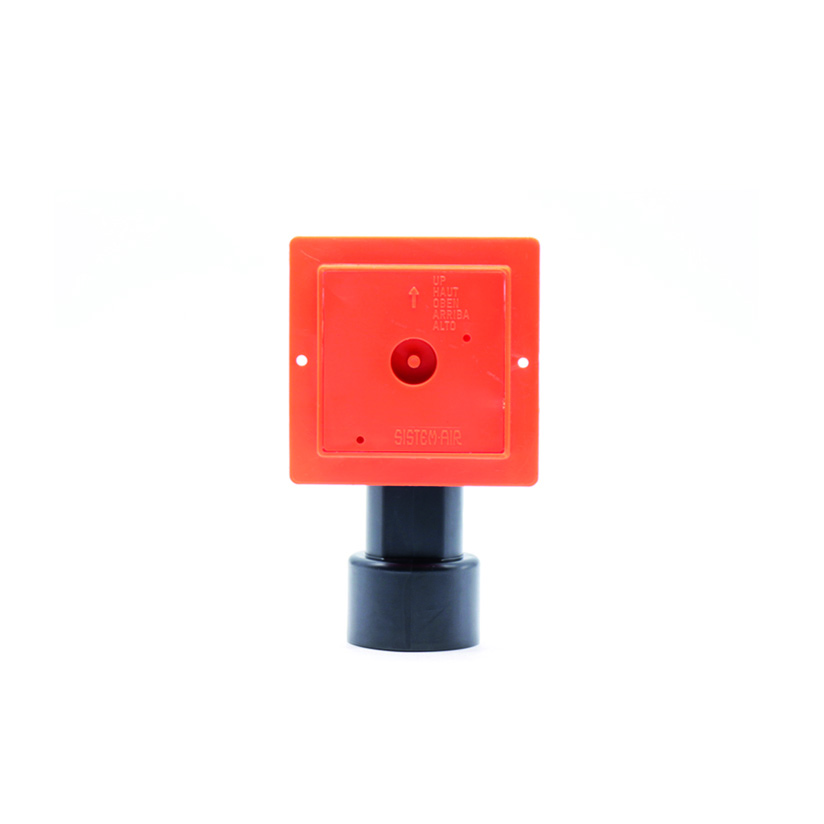

The installation kit is fully compatible with square vacuum inlets, ensuring a safe and reliable setup with the main central vacuum inlet lines.

Choosing the vacuum unit
To complete the system and select the most suitable central vacuum unit, browse our range of central vacuum power units.

For additional information on central vacuum installation, read the technical guidelines.
