Slim doser

Slim Doser for Biomass Feeding Systems

The Slim Doser is a compact and efficient solution designed to ensure a safe, automatic and continuous fuel supply to biomass boilers. Thanks to its ultra-compact design, it can be installed even on hoppers with limited space, offering maximum flexibility with no structural modifications.

Compact Design and Fire-Retardant Materials

The Slim Doser is made from fire-retardant PC/ABS, providing excellent durability and mechanical resistance. This makes it suitable for intensive use and ensures long-lasting reliability in biomass transport systems.

Automatic Dosing with Magnetic Sensor

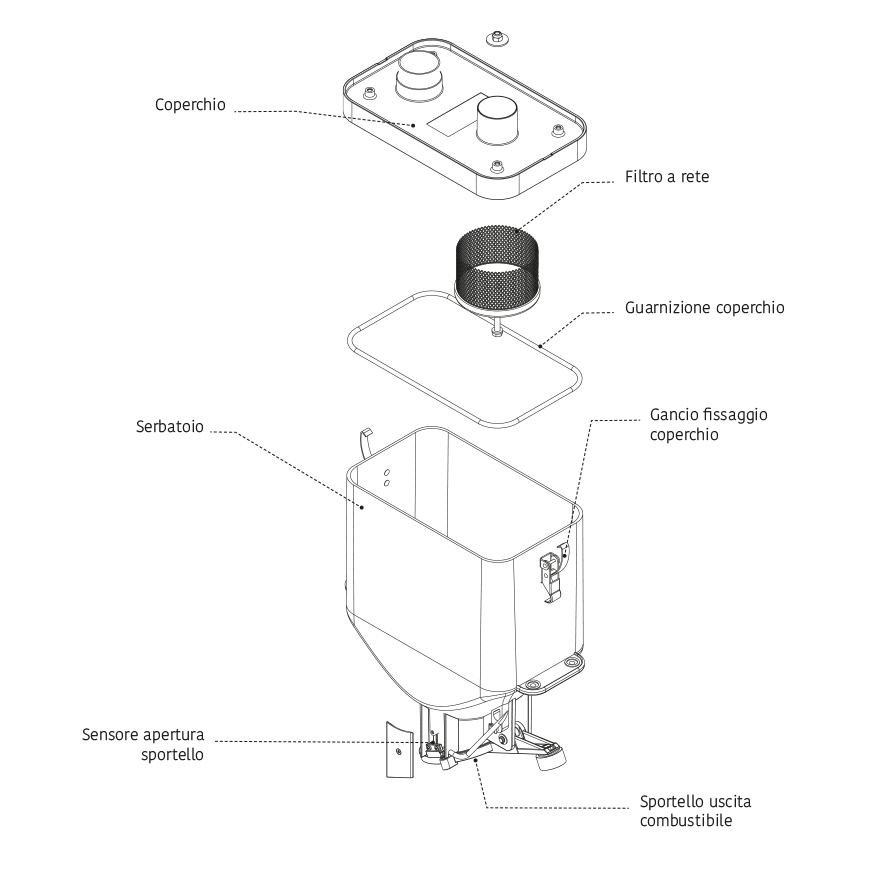

The fuel outlet gate is equipped with a magnetic sensor that activates the automatic feeding process. This guarantees precise fuel dosing, prevents overloading and improves overall operating safety.

Performance and Technical Features

• Feeding capacity: approx. 6 litres
• Dosing rate: approx. 5.2 litres/minute
• Integrated mesh filter for flow protection and stability
• Weight: 2.2 kg
• Protection rating: IP44

Easy and Accurate Installation

The system is supplied with a positioning template, enabling quick and accurate mounting on the boiler hopper. The slim configuration makes it ideal for installations where space is limited but performance must remain high.

System Compatibility

For correct operation, the Slim Doser must be paired with:

• Control Panel Drive – item AP4200.00.01
• Nova 1 Plus modular vacuum unit – item AP1000.50.07
• or Nova 2 – item AP1000.50.01

Main Technical Specifications

• Item code: AP3400.10.10
• Material: fire-retardant PC/ABS
• Maximum capacity: 6 litres
• Protection rating: IP44
• Dimensions: A 400 mm – B 180 mm – C 300 mm – F 463 mm

For full details, please refer to the complete technical datasheet.
