Slim dispenser wall brackets

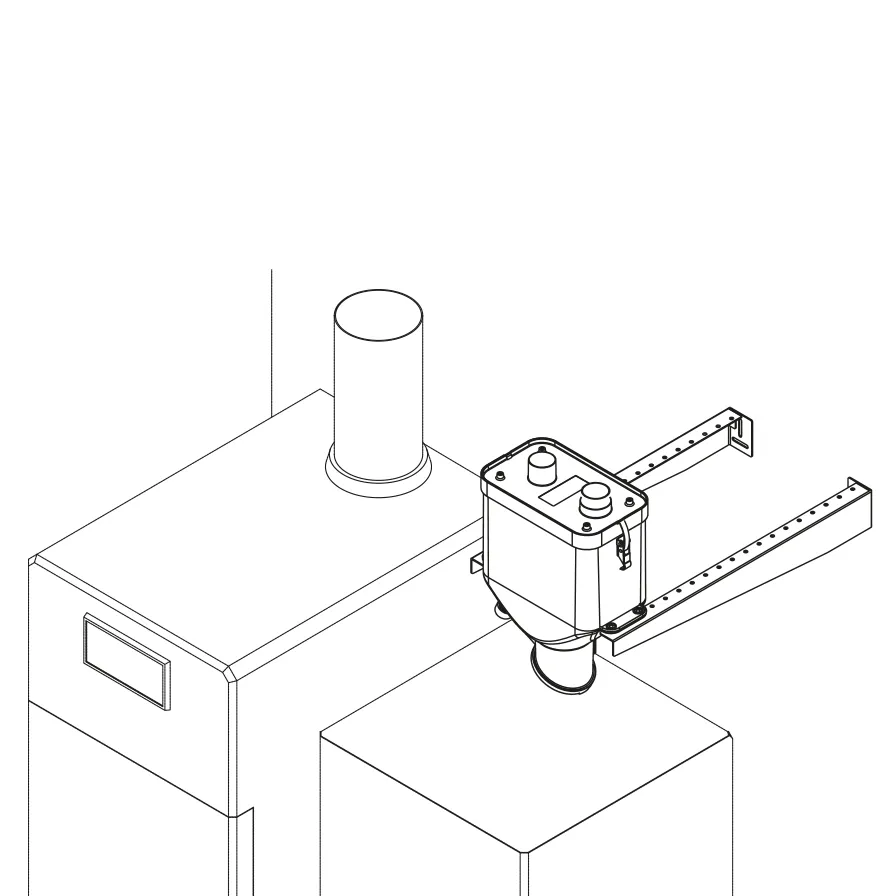

The Slim dispenser wall brackets are designed to support the installation of the Slim dispenser (art. AP3400.10.10) when mounting directly on the tank is not possible or when additional distance from the support wall must be compensated. They provide a stable and reliable solution for positioning the dispenser exactly where it is needed to ensure correct fuel delivery.

The brackets must be firmly secured to the wall before placing the Slim dispenser in the desired position using the dedicated anchoring points. To guarantee safe operation and prevent accidental fuel leakage during refilling, the height between the dispenser flanges and the boiler edge must not exceed 160 mm.

Manufactured from galvanised steel sheet, the brackets offer high durability and resistance to deformation. Their straightforward installation makes them an effective and practical accessory for completing any boiler room setup requiring a Slim dispenser.

Features

• Exclusive for Slim dispenser: Engineered specifically for art. AP3400.10.10.
• Universal for all boilers: Compatible with any boiler model requiring wall installation.
• Multiple anchoring points: Allows precise selection of the dispenser position.
• Wall mounting: Stable and easy installation on vertical surfaces.
