Regular doser

Regular Doser for Biomass Heating Systems

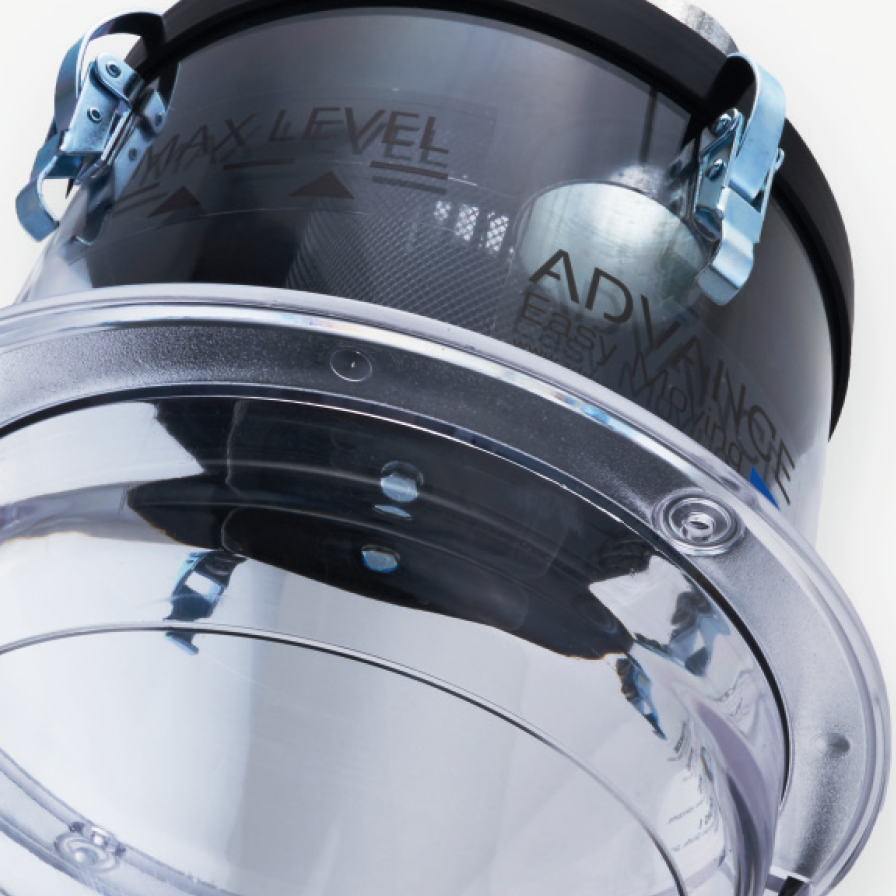

The Regular Doser is designed to automatically feed biomass boilers by ensuring a constant and reliable fuel supply. Made from self-extinguishing transparent polycarbonate, it allows instant visual control of the fuel level and movement inside the hopper.

Safety and Reliability

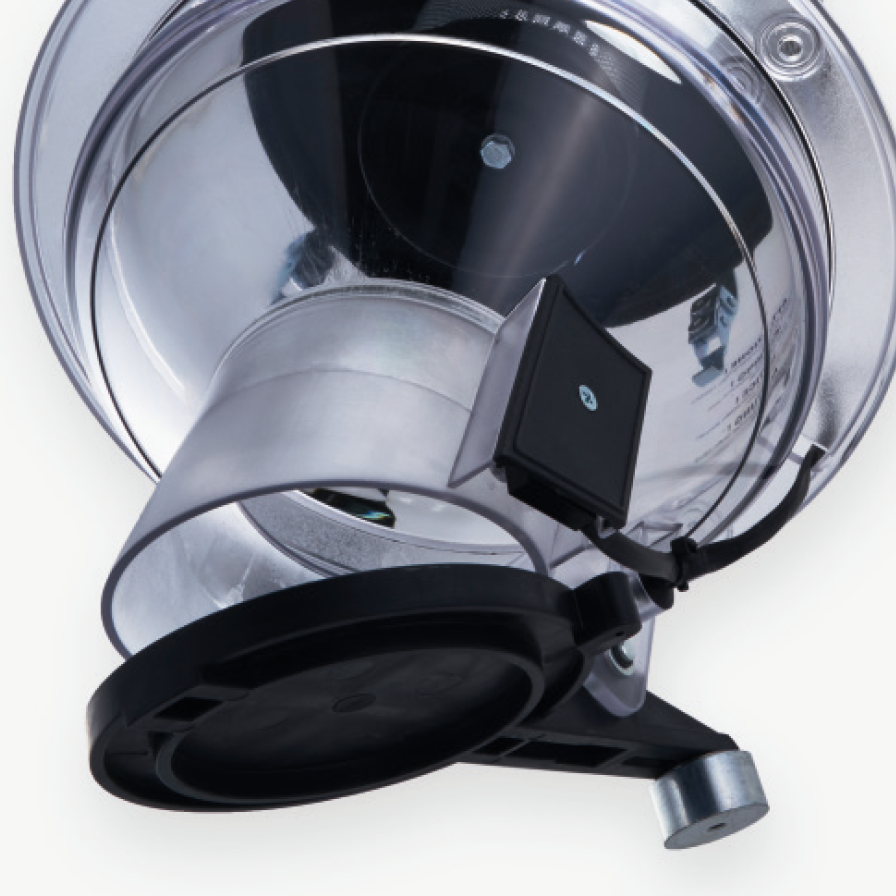

Tested over thousands of work cycles, the Regular Doser guarantees long-term durability and excellent resistance to the stresses of biomass transport systems. The fuel outlet gate features a magnetic sensor that enables fully automatic boiler loading, improving both efficiency and operational safety.

Dosing Performance

• Feeding capacity: approx. 5.2 litres of fuel per minute
• Integrated mesh filter for flow protection and stability
• Compact design suitable for standard boiler hoppers

Easy Installation

The doser is supplied with a positioning template to ensure quick and precise installation. The transparent body helps the operator verify the correct functioning of the system at a glance.

System Compatibility

For complete operation, the Regular Doser must be combined with:

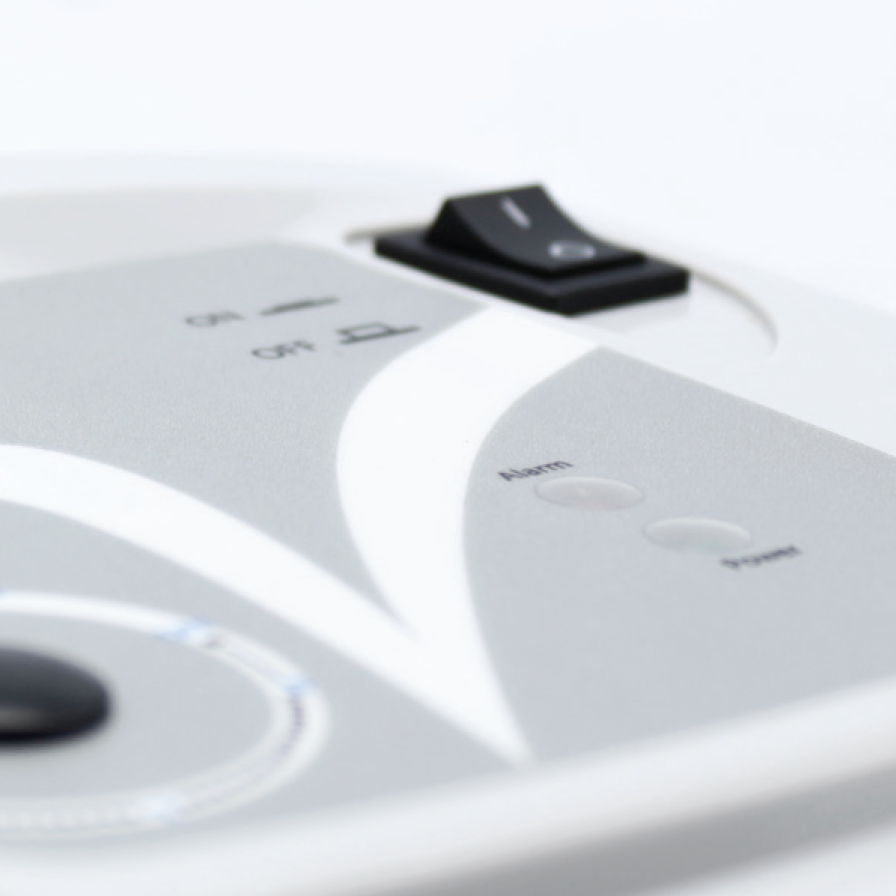

• Control Panel Drive (item AP4200.00.01)
• Nova 1 Plus modular vacuum unit (item AP1000.50.07) or Nova 2 (item AP1000.50.01)

Main Technical Features

• Item: AP3400.10.01
• Weight: 1.65 kg
• Maximum capacity: 5.2 litres
• Protection rating: IP44
• Material: self-extinguishing transparent polycarbonate

For more information, call +39 0381 650082 or write to [email protected] .
