Nova 3

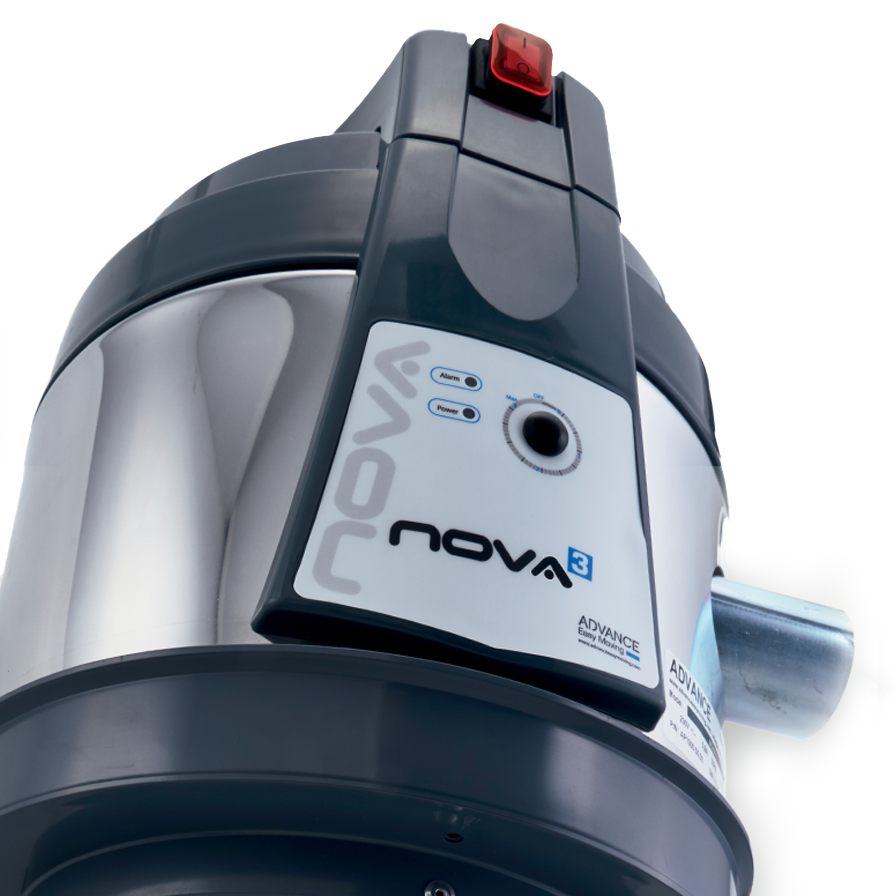

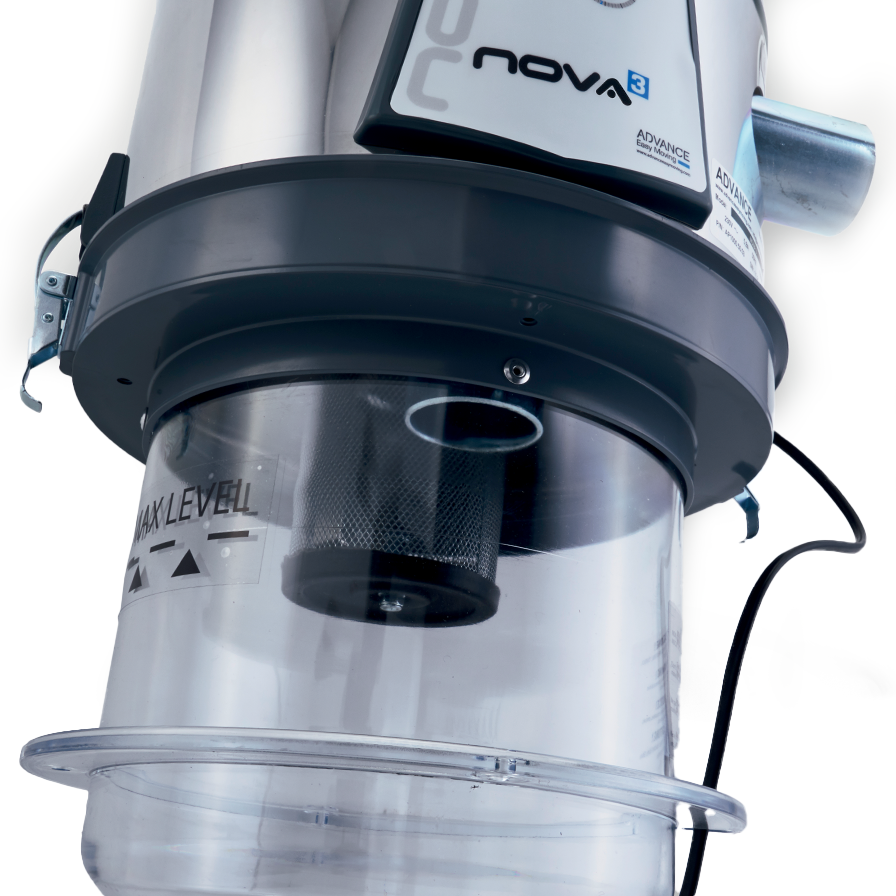

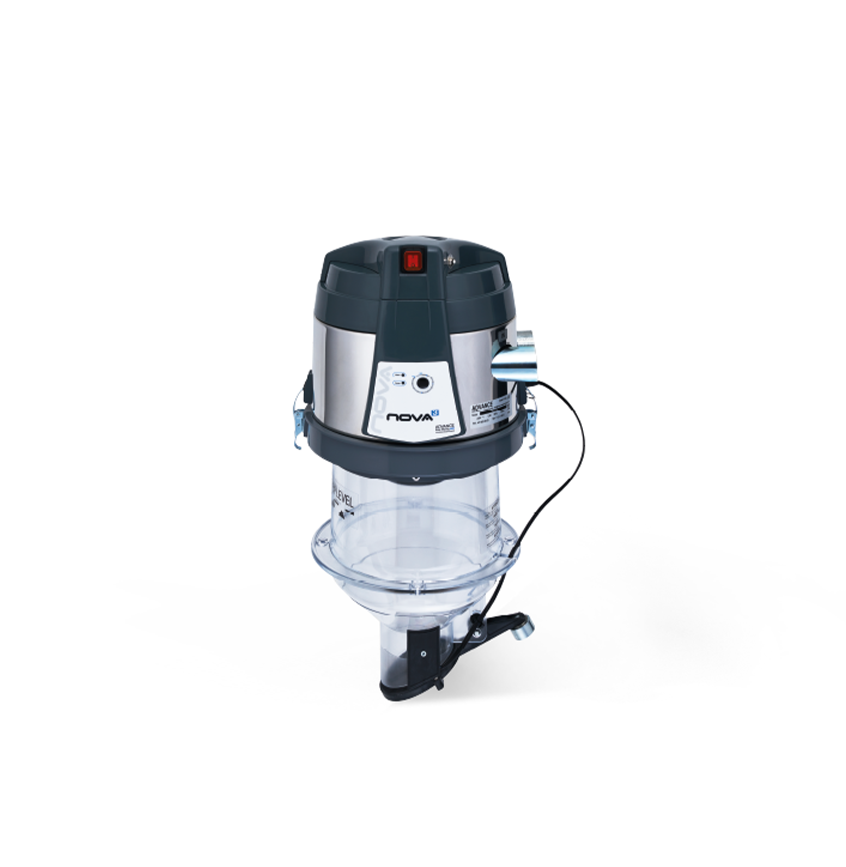

Nova 3 is an integrated vacuum unit that combines the electronics, dispenser and motor into a single compact body. This all in one configuration drastically reduces installation time and minimises the space required in the boiler room, making it an ideal solution for both residential and technical environments.

The impeller motor group features an electric tangential by pass motor protected by a maintenance free mesh filter. Designed to be connected from the right side, Nova 3 eliminates the need for separate dispenser and vacuum unit connections, simplifying the overall system layout.

The unit can be installed directly onto the boiler tank using the fixing points on the flange, ensuring stable and precise positioning. All system connections must be made using antistatic fittings to guarantee safe fuel transport and compliance with installation standards.

With its integrated design and high performance motor, Nova 3 streamlines biomass extraction, improves reliability and enhances the efficiency of single pipe and double pipe systems.

Features

• Suitable for single pipe or double pipe systems: Ensures full compatibility with standard extraction configurations.
• Designed for systems up to 20 m long: Maintains reliable suction over extended distances.

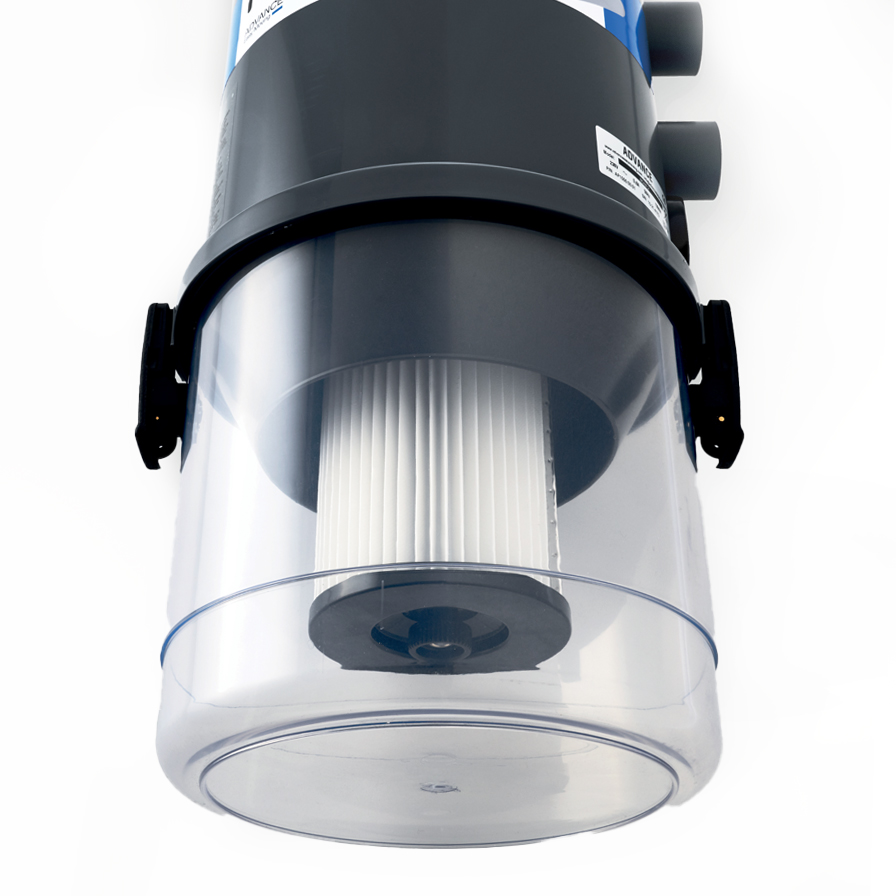

• Motor with mesh filter: Maintenance free protection for long term operation.
• Fully integrated system: Motor, dosing and control electronics in one compact unit.
